Air Handling Unit Supplier for Commercial, Industrial and Process HVAC
SongXin supplies air handling units for commercial buildings, industrial facilities, process air treatment, public buildings and customized HVAC projects. Our AHU solutions help control airflow, filtration, temperature, humidity and indoor air quality — matched to the real needs of each project.
Get an AHU Quote
As an air handling unit supplier, SongXin understands that two AHUs with the same airflow can perform very differently. Coil selection, fan pressure, filter grade, casing strength, leakage control, drainage, noise level and control logic all affect final performance.
That is why a good AHU should be selected by project conditions, not only by airflow. SongXin coordinates with chillers, DX systems, heat pumps and controls so the air-side and source-side work together.
Quick Answer for Buyers
An air handling unit supplier should help you define airflow, external static pressure, cooling and heating coil capacity, filtration level, fresh air ratio, humidity control, casing requirements, noise level and control interface. The right AHU is not only a fan box — it is the air-side center of the HVAC system and must match the building load, duct system, indoor air quality target and maintenance plan.
For commercial buildings, comfort and energy efficiency are usually the main goals. For industrial and process HVAC, temperature stability, filtration, corrosion resistance, humidity control and reliable operation may be more important. Send air volume, static pressure, water temperature, filter grade and application details before asking for a quotation.
What Is an Air Handling Unit?
An air handling unit, also called an AHU, is equipment that conditions and moves air through an HVAC system. It can include fans, filters, cooling coils, heating coils, humidifiers, dampers, silencers, mixing sections, heat recovery sections and control components.
An AHU is usually connected to ductwork and supplies treated air to rooms, halls, workshops or process areas. It may work with a chiller, heat pump, boiler, VRF system or other cooling and heating source.
Main Functions of an AHU
| Function | Purpose |
|---|---|
| Air supply | Delivers conditioned air to occupied or process zones |
| Filtration | Removes dust and airborne particles |
| Cooling | Uses chilled water or DX coil to lower air temperature |
| Heating | Uses hot water, electric heating or heat pump source |
| Humidity control | Supports comfort or process humidity requirements |
| Fresh air mixing | Introduces outdoor air for ventilation |
| Exhaust / return handling | Supports balanced air movement |
| Noise control | Reduces fan and airflow noise |
AHU Types SongXin Can Support
Commercial AHU
For offices, hotels, malls, schools, hospitals, airports and public buildings — comfort, indoor air quality, energy efficiency and stable operation.

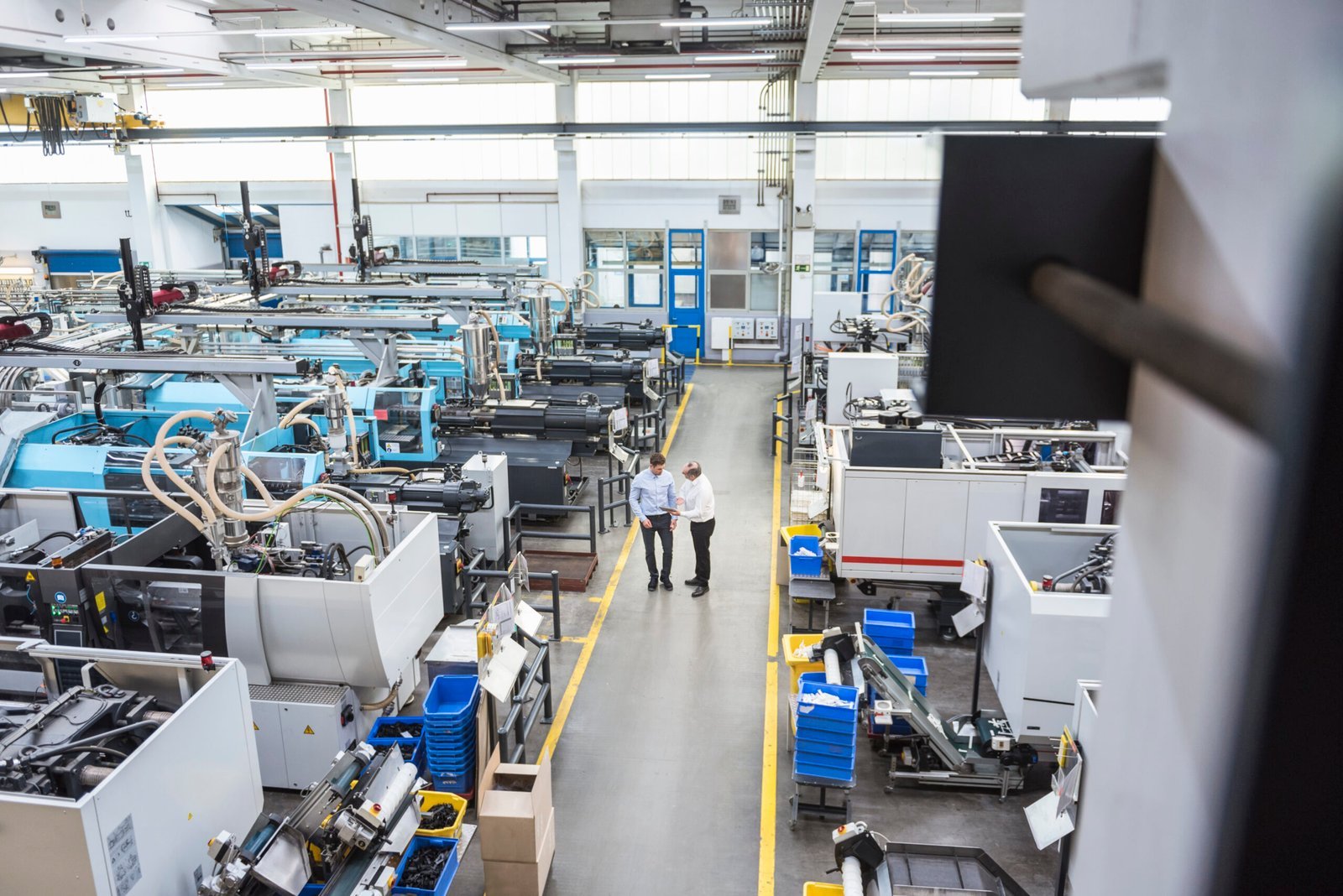

Industrial AHU
For factories, workshops, warehouses and production support areas — stronger casing, higher airflow, special filtration or higher static pressure.
Process AHU
For spaces where air conditions affect production, storage or quality control. Temperature, humidity, filtration and pressure control take priority.

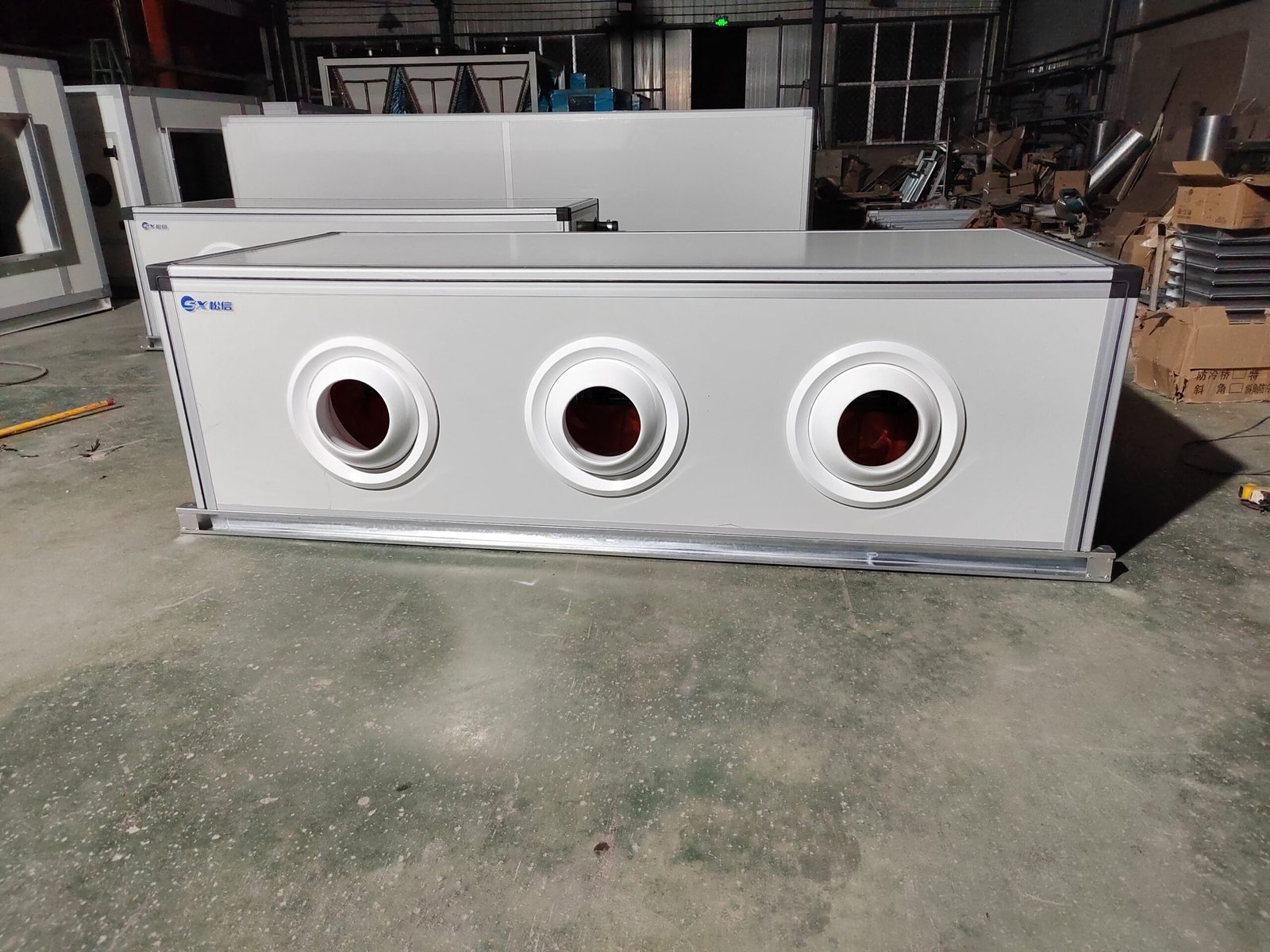

Hygienic AHU
For healthcare, laboratories and clean production areas — higher filtration, easier cleaning, smooth internal surfaces, strict leakage control.

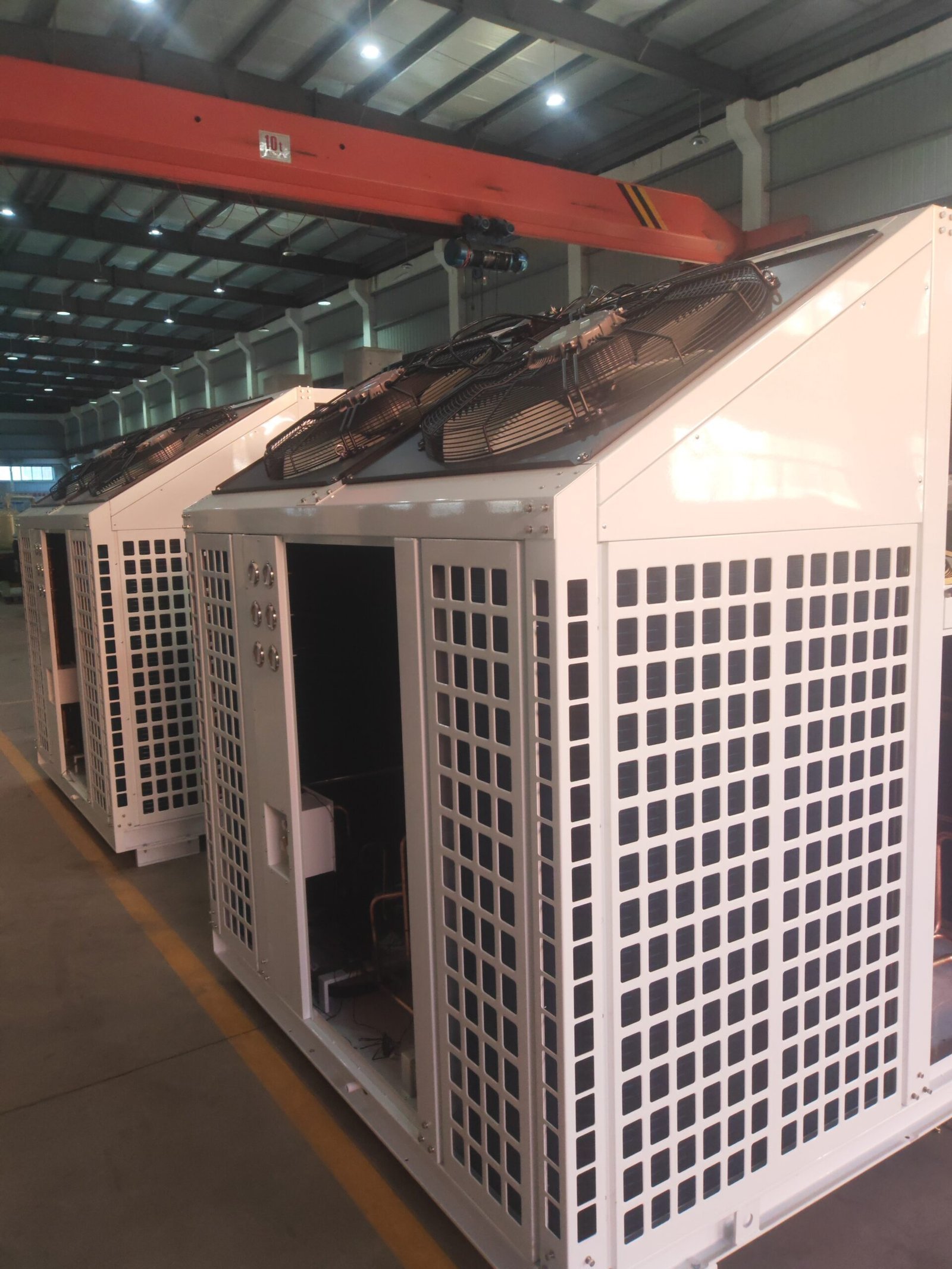

Modular AHU
Configurable functional sections for larger projects with custom airflow, filtration, coil arrangement and service access requirements.
Indoor & Outdoor AHU
Casing options for basements, technical rooms, rooftops and outdoor platforms — including weather, corrosion and insulation protection.
SongXin AHU Range
These are verified airflow ranges from SongXin’s current AHU line. Final coil, filter and casing configuration is built to project requirements.
Ceiling, Vertical and Horizontal AHUs
| Type | Air Volume | Best For | Noise |
|---|---|---|---|
| Ceiling type | 1,000 – 20,000 m³/h | Offices, malls | ≤ 68 dB |
| Vertical type | 2,000 – 40,000 m³/h | Large halls, factories | ≤ 75 dB |

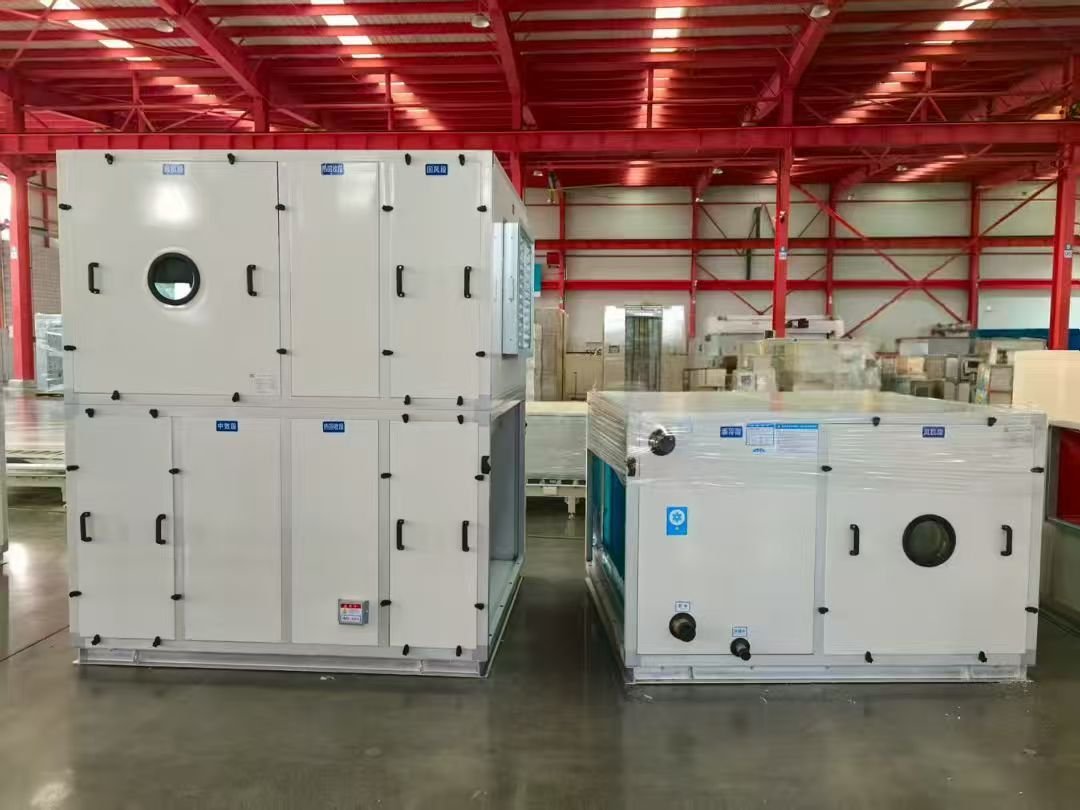

| Horizontal type | 2,000 – 40,000 m³/h | Basements, technical rooms | ≤ 75 dB |
Request the configured datasheet (airflow, ESP, coil capacity at your water temperature, filter grade, sound level) before ordering.
Where SongXin Air Handling Units Are Used
- Office buildings
- Hotels and commercial complexes
- Shopping malls
- Hospitals and healthcare spaces
- Airports and transportation buildings
- Industrial workshops
- Manufacturing facilities
- Laboratories
- Data and equipment rooms
- Warehouses and logistics centers
- Public halls and large-volume buildings
- Schools, universities, training centers
Comfort AHU vs Process AHU
| Item | Comfort AHU | Process AHU |
|---|---|---|
| Main goal | Human comfort and indoor air quality | Stable air conditions for production or technical use |
| Control focus | Temperature, fresh air, noise | Temperature, humidity, filtration, pressure, cleanliness |
| Common locations | Offices, hotels, malls, public buildings | Factories, labs, clean areas, storage rooms |
| Selection priority | Comfort and energy efficiency | Reliability and process stability |
Before choosing an AHU, define whether the system is mainly for comfort, process support — or both.
Key Selection Data for an Air Handling Unit
- Required air volume
- External static pressure
- Cooling and heating capacity
- Chilled-water / hot-water conditions
- Fresh air percentage
- Return air condition
- Filtration level
- Humidity requirement
- Noise limit
- Installation space
- Indoor or outdoor installation
- Power supply
- Control and BMS requirements
- Project location and climate
AHU Engineering Selection Framework
This framework helps buyers prepare a more accurate request and avoid common selection mistakes.
Confirm Air Volume
Air volume is calculated from room load, ventilation requirement, air changes per hour or process requirement. For comfort projects, it must support both temperature control and fresh air demand. For industrial projects, it may also remove heat, dust, odor or humidity.
Confirm External Static Pressure
One of the most important AHU parameters. ESP must overcome duct resistance, filters, dampers, diffusers, silencers and other air-side components. Correct airflow with insufficient pressure will not deliver air properly after installation.
Confirm Coil Conditions
Cooling coil performance depends on entering air condition, leaving air requirement, chilled-water temperature, water flow and coil rows. For humidity control, coil surface temperature and air velocity matter.
Confirm Filtration Requirement
Filter selection affects air quality and pressure drop. Higher grade improves cleanliness but increases fan power and maintenance. Industrial, healthcare, lab and clean-area projects should define filter grade early.
Confirm Installation Environment
Indoor, rooftop and outdoor AHUs need different casing and protection. Outdoor units should consider rain protection, insulation, anti-corrosion, panel strength and service access.
AHU Configuration Options to Discuss
| Configuration Item | Options to Consider |
|---|---|
| Fan type | Forward curved, backward curved, plug fan, EC fan |
| Coil type | Chilled-water, hot-water, DX or electric heating |
| Filter stage | Primary, medium, high-efficiency, project-specific |
| Casing | Indoor, outdoor, modular, insulated, anti-corrosion |
| Heat recovery | Plate, wheel or other recovery options where suitable |
| Humidity control | Humidifier, dehumidification coil or process humidity design |
| Controls | Local controller, VFD, sensors, alarms, BMS interface |
| Service access | Filter door, coil access, fan inspection, drain pan cleaning |
What Makes a Strong AHU Supplier?
| Supplier Capability | Buyer Benefit |
|---|---|
| Airside selection support | Reduces risk of low airflow or poor comfort |
| Coil and filter coordination | Improves temperature control and indoor air quality |
| Custom casing options | Fits indoor, outdoor, industrial or corrosive environments |
| Documentation support | Helps consultant review and contractor installation |
| Factory quality control | Reduces leakage, vibration and assembly problems |
| Integration knowledge | Coordinates with chillers, heat pumps and controls |
| Export delivery experience | Supports international projects and distributors |
Important AHU Components
Fan Section
Must provide airflow and pressure for the duct system. Fan type, motor efficiency, vibration control and service access all matter.
Filter Section
Protects indoor air quality and downstream components. Filter grade should match the application.
Cooling / Heating Coils
Coil capacity depends on water temperature, entering air, airflow and required leaving air temperature.
Casing & Panel
Reduces air leakage, condensation and noise. Outdoor units may need weather and anti-corrosion treatment.
Drain Pan
Removes condensate and reduces water retention — important for hygiene and long-term reliability.
Controls
Fan speed, valve control, temperature and humidity sensors, damper control, filter alarm and BMS communication.
Common AHU Buying Mistakes
- Choosing only by airflow
- Ignoring external static pressure
- Underestimating filtration pressure drop
- Not confirming coil water temperature
- Forgetting condensate drainage
- Wrong casing for outdoor installation
- Ignoring filter replacement access
- Not checking noise requirements
- Missing BMS or control interface requirements
- Comparing only initial price, not lifecycle performance
Why Choose SongXin as Your AHU Supplier?
SongXin provides practical HVAC equipment and support for project buyers who need reliable air-side solutions.
- Commercial and industrial AHU selection
- Custom configuration based on airflow, pressure and treatment needs
- Support for comfort, process and special application projects
- Factory manufacturing and quality inspection
- Documentation support for project communication
- Global delivery and technical coordination
- Integration with chillers, heat pumps and other HVAC systems
Commercial Buying Path
Different buyers should send different information.
| Buyer Type | Main Concern | Information to Send |
|---|---|---|
| Consultant | Performance and specification compliance | Airflow, ESP, coil data, filter grade, noise limit |
| Contractor | Installation and commissioning | Dimensions, access side, power supply, duct connection, controls |
| Distributor | Repeatable product range | Common airflow range, voltage, target applications, certs |
| Factory owner | Reliability and process stability | Room conditions, process requirement, operating hours, filtration |
| Building owner | Comfort and energy cost | Building type, load data, fresh air requirement, maintenance preference |
Frequently Asked Questions
What does an air handling unit do?
An AHU moves and conditions air in an HVAC system. It can filter, cool, heat, humidify, dehumidify and distribute air through ductwork.
What is the difference between an AHU and an FCU?
An AHU usually handles larger airflow and connects to a duct system. A fan coil unit is generally smaller and serves a room or zone directly.
How do I choose the right AHU supplier?
Choose a supplier that can review airflow, pressure, coil conditions, filtration, humidity, controls, installation space and project application. A strong supplier helps with selection, not only sells a standard box.
Can SongXin provide industrial air handling units?
Yes. SongXin can discuss higher airflow, filtration, corrosion protection, process temperature control and special installation conditions.
What information is needed for an AHU quotation?
Airflow, static pressure, cooling and heating load, water temperature, fresh air ratio, filter requirement, installation location, power supply and control requirements.
Why is external static pressure important?
ESP tells the supplier how much resistance the fan must overcome outside the AHU. If it is too low, the unit may not deliver enough air through the duct system, even if the nominal airflow looks correct.
Can an AHU control humidity?
Yes, but humidity control requires proper coil selection, air temperature control and sometimes humidification or reheat. For process HVAC, humidity requirements should be clearly provided before selection.
Should I choose a standard AHU or a custom AHU?
A standard AHU may be suitable for simple comfort applications. A custom AHU is better when the project has special airflow, pressure, filtration, outdoor installation, corrosion protection, humidity control or process requirements.
About SongXin
SongXin (SXIN HVAC) is a commercial and industrial HVAC manufacturer with deep manufacturing experience and customers in over 50 countries. Air handling units cover ceiling, vertical and horizontal types from 1,000 to 40,000 m³/h, built under ISO 9001 with CE, AHRI, EN 14511 and ROHS compliance and verified to AHRI / EN / GB/T benchmarks. SongXin also supplies chillers, DX systems and heat pumps, so the AHU can be coordinated with the cooling/heating source. Contact: info@sxinhvac.com · +86 153-1889-6990.
Request an AHU Selection
If you are looking for air handling unit suppliers for a commercial, industrial or process HVAC project, send your airside data to SongXin. Our team can help recommend an AHU configuration that fits your building and operating conditions.
Contact SongXin for an AHU Quote →
