Efficient One-Stop Air Source Hot Water Supply Solutions for Every Industry
Modern buildings demand seamless, energy-efficient hot water systems that are easy to install, durable, and cost-effective. The SongXin One-Stop Air Source Hot Water Supply System delivers all these advantages in one integrated solution. Designed for institutions and commercial spaces such as hotels, schools, hospitals, and factories, this system combines cutting-edge heating technology with intelligent automation to provide a continuous supply of hot water—anytime, anywhere.

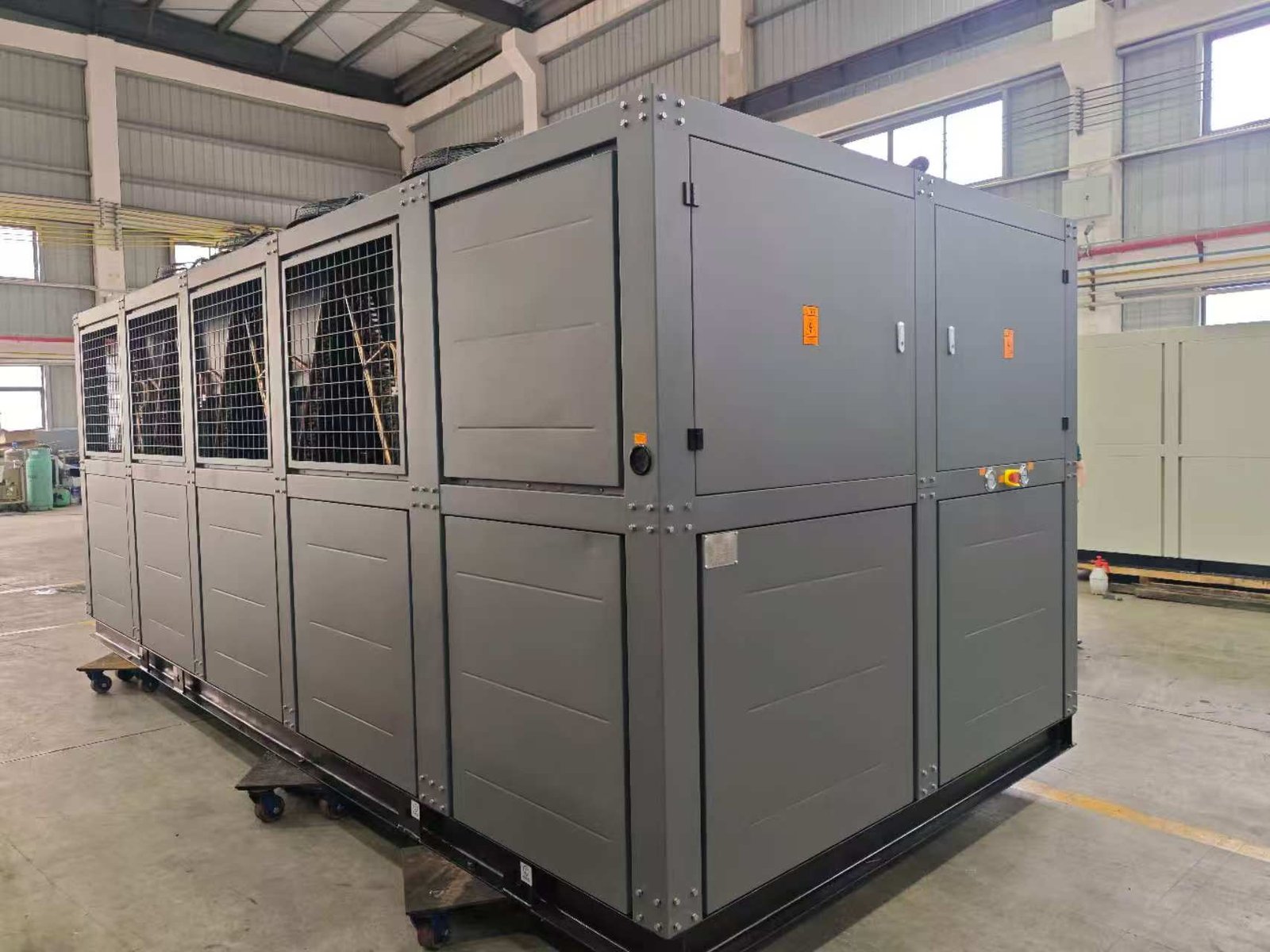

Introduction to SongXin One-Stop Air Source Heat Pump Hot Water Supply System

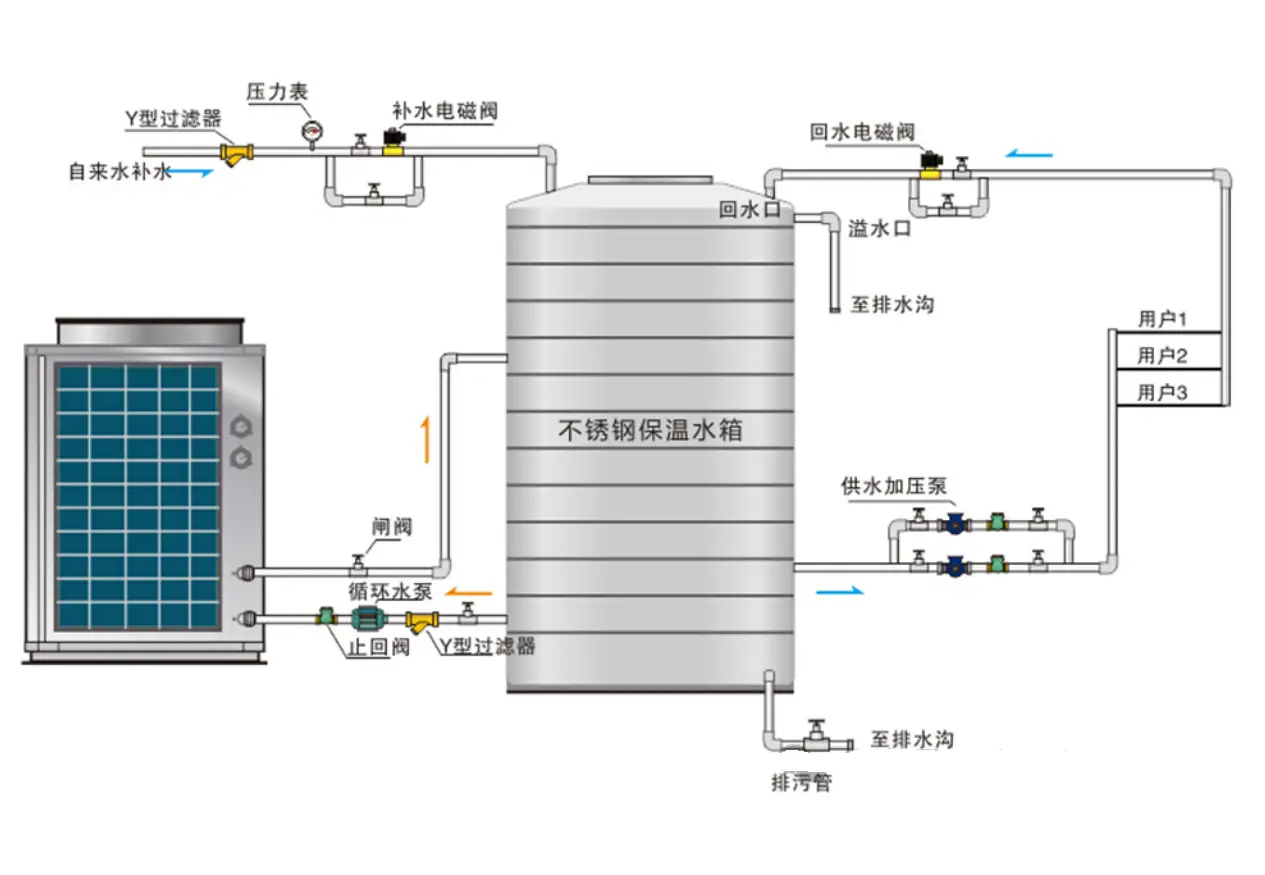

The One-Stop Air Source Heat Pump Hot Water Supply System brings together multiple key components—low-temperature air source heat pump unit, water pump, pump controller, temperature controller, silica crystal water treatment device, and piping accessories—into a single, comprehensive solution. By consolidating the traditional multi-component design into a unified system, SongXin simplifies installation, operation, and maintenance.
Engineered for convenience and efficiency, the system guarantees constant-temperature and constant-pressure hot water output round the clock. The integration of smart control technology makes it possible to monitor and manage the system remotely, ensuring reliable performance and ease of use for facility managers and end users alike.
Integrated Components
All-in-one system with heat pump, pumps, controllers, and piping
Simplified Installation
Unified design reduces installation time and complexity
24/7 Hot Water
Constant-temperature and constant-pressure output round the clock
Smart Control
Remote monitoring and management for reliable performance
Key Features of the SongXin One-Stop Air Source Hot Water Supply System
Convenient and Fast Installation
The hallmark of the SongXin One-Stop Air Source Hot Water Supply System is its convenience. Each unit integrates the heat pump, insulated water tank, water supply pump, and related piping accessories into a single, compact package. Users need only connect three simple pipes before the system is operational—eliminating the need for pump selection or complicated on-site installation.
- Reduces setup time by up to 50% compared to conventional systems
- Saves labor and shortens project schedules
- Minimizes technical errors during installation
- Compact footprint ideal for limited mechanical space or retrofits
Energy-Saving Design for Maximum Efficiency
Energy performance lies at the core of SongXin's design philosophy. The insulated water tank employs super polyurethane foam insulation known for its ultra-low thermal conductivity. This superior insulation effectively reduces heat loss, maximizing energy savings.
The system produces four or more units of heat energy for every unit of electrical energy consumed, resulting in lower operational costs and significant reductions in carbon emissions compared with traditional gas or electric water heating methods.
Safe, Hygienic, and Reliable Construction
Durability and hygiene are essential for any large-scale hot water system. That's why the SongXin One-Stop Air Source Hot Water Supply System uses stainless steel for both the tank liner and exterior casing, ensuring corrosion resistance, robustness, and long service life. The water remains clean, safe, and hygienic even after prolonged operation.
Stainless Steel Construction
Tank liner and exterior casing for corrosion resistance
Silica Crystal Water Treatment
Mitigates scale formation and corrosion
Insulated Piping
Protective wrapping prevents freezing and thermal loss
Long Service Life
Robust design reduces maintenance frequency
These features safeguard the system's long-term performance and reduce the frequency of maintenance interventions, ensuring clean, safe, and hygienic water even after prolonged operation.
Remote Control and Intelligent Unattended Operation
Digitalization is transforming HVAC and water systems management—and SongXin leads this transformation. The integrated control platform of the One-Stop Air Source Hot Water Supply System supports remote ON/OFF control, fault diagnosis, mobile app access, and data logging. This enables facility personnel to manage operations from anywhere, ensuring quick adjustments and immediate responses to system alerts.
Remote ON/OFF Control
Manage system operations from anywhere
Fault Diagnosis
Immediate alerts and troubleshooting guidance
Mobile App Access
Control and monitor via smartphone or tablet
Data Logging
Historical performance tracking and analysis
Intelligent Automation
The system automatically adapts to environmental conditions, such as variations in ambient temperature or water demand. This intelligent automation supports unattended operation, significantly reducing maintenance costs and enhancing overall reliability.
Technical Specifications of One-Stop Air Source Hot Water Supply System
The One-Stop Air Source Heat Pump Hot Water Supply System offers a wide range of capacities tailored to different facility requirements. Below are typical technical values:
| Parameter | Range (Typical Values) |
|---|---|
| Nominal Hot-Water Heating Capacity (kW) | 11 – 40 |
| Nominal Hot-Water Output (m³/h) | 0.24 – 0.86 |
| Low-Temperature Heating Capacity (kW) | 9 – 34 |
| Hot-Water Output @ Low Temp (m³/h) | 0.175 – 0.635 |
| Unit Power Input (kW) | 2.5 – 9.2 |
| Max Running Current (A) | 8 – 29 |
| Compressor Type | Low-temperature enhanced scroll |
| Refrigerant | R22 / R410A |
| Control | Dual electronic expansion valves |
| Heat Exchanger | High-efficiency finned coil (outdoor) / shell-and-tube (indoor) |
| Circulation Pump Flow (m³/h) | 2 – 8 |
| External Head (m) | 15 – 17 |
| Tank Material | Stainless steel |
| Tank Volume (m³) | 2 – 8 |
| Control Mode | Intelligent cloud control |
| Safety Protections | Flow, high/low pressure, anti-freeze, fan overload, compressor overload, phase protection |
| Dimensions (mm) | 2460–3225 × 1420–2196 × 1990–2720 |
Application Scenarios for the One-Stop Air Source Hot Water Supply System
The SongXin One-Stop Air Source Hot Water Supply System is engineered to serve a wide range of commercial and institutional applications, offering scalable solutions for medium and large user groups.
Schools and Universities
Student dormitories, canteens, gym facilities
- Compact design integrating heat pump, tank, and pump systems
- Simple "plug-and-play" installation with just three pipe connections
- Continuous, 24/7 supply of hygienic hot water
For educational campuses where reliability and safety are paramount, SongXin provides a consistent One-Stop Air Source Hot Water Supply solution that supports large groups with minimal maintenance.
Factories and Staff Dormitories
Industrial staff housing, manufacturing facilities, centralized bathing centers
- High-volume hot water output suitable for continuous production cycles
- Time-saving installation process with significant labor reduction
- Durable stainless-steel tanks ensuring longevity in demanding environments
Industrial settings require stable operation and cost efficiency. The SongXin One-Stop Air Source Hot Water Supply System meets both demands by combining durability with outstanding heating performance.
Hotels and Resorts
Guest room amenities, SPA and wellness centers, kitchens, laundry facilities
- Space-saving integrated configuration ideal for both new builds and retrofits
- Intelligent remote monitoring for precise water temperature management
- Up to 40% energy savings compared with conventional boilers or electric heaters
Hotels prioritize guest comfort and operational cost efficiency. The One-Stop Air Source Hot Water Supply System ensures a steady supply of hot water while significantly reducing energy bills.
Hospitals and Healthcare Facilities
Patient wards, medical cleaning, sterilization departments, staff accommodation
- Delivers uninterrupted hot water during peak demand
- Multi-layer safety protections for pressure, flow, and electrical stability
- Compact footprint suitable for space-constrained utility rooms
For healthcare institutions, reliability and hygiene are critical. SongXin's advanced protection features and stainless-steel construction ensure a sanitary and dependable solution.
Advanced Control and Protection for Total Peace of Mind
Every SongXin One-Stop Air Source Hot Water Supply System is equipped with multi-level protection mechanisms, including safeguards against overpressure, water-flow interruption, freezing, and power phase issues. Integrated sensors constantly monitor system parameters to guarantee safe and stable operation.
The intelligent control system also records operational data in real time, providing valuable insights for performance optimization and preventive maintenance. Facility managers can access reports and fault diagnostics through the mobile platform, enabling timely service and ensuring the system operates at peak performance with minimal downtime.
Overpressure Protection
Automatic pressure monitoring and release
Water-Flow Protection
Detects and prevents flow interruption
Anti-Freeze Protection
Prevents freezing in low temperatures
Phase Protection
Guards against power phase issues
Overload Protection
Fan and compressor overload safeguards
Real-Time Monitoring
Continuous system parameter tracking
Intelligent Mobile Platform
Facility managers can access reports and fault diagnostics through the mobile platform, enabling timely service and ensuring the system operates at peak performance with minimal downtime.
Why Choose SongXin HVAC
Behind every One-Stop Air Source Hot Water Supply System stands SongXin HVAC, a trusted leader in heating, ventilation, and air-conditioning solutions. With a heritage rooted in innovation and reliability, SongXin HVAC has earned its reputation across more than 50 countries worldwide.
Our state-of-the-art factory covers 50,000 square meters and houses advanced testing laboratories for pressure, leakage, noise, and environmental simulations. Each product undergoes 100% material inspection and comprehensive final testing following international standards. This meticulous quality control ensures every system delivered performs with precision and durability.
SongXin HVAC's commitment to excellence, technical expertise, and customer satisfaction has made the SongXin One-Stop Air Source Hot Water Supply System a preferred choice for institutions and enterprises seeking energy-efficient, intelligent, and long-lasting hot water solutions.
Advanced Testing Laboratories
Pressure Testing
Leakage Testing
Noise Testing
Environmental Simulation
Optimize Your Hot Water Supply with SongXin's Intelligent Air Source System
The SongXin One-Stop Air Source Hot Water Supply System stands as a benchmark in modern water-heating innovation—bringing together energy efficiency, safety, convenience, and smart control in one integrated solution. Whether you're managing a hotel, a school, a hospital, or an industrial facility, SongXin provides the reliable infrastructure required to ensure uninterrupted, high-quality hot water while reducing energy consumption and maintenance costs.
More Than Just Equipment
By choosing the SongXin system, you're investing not only in equipment but also in long-term operational value, sustainability, and user comfort. It's more than just a water-heating device—it's a complete one-stop solution that sets new standards for intelligent hot water management across multiple industries.
