Premium Solutions

Professional Portable Cooling for Any Event

Transform any outdoor event with powerful, efficient cooling solutions. Industry-leading technology keeps your guests comfortable in any weather.

50-1,000+m²
Coverage
15-30min
Setup
3-50HP
Power
01

Wide Coverage

Covers 50m² to 1,000+m² with precision control

02

Quick Setup

Professional installation in 15-30 minutes

03

Multi-Purpose

Perfect for events, weddings & exhibitions

04

High Performance

Eco-friendly refrigerants with smart controls

Quick Answer

What Are Tent Air Conditioners?

Tent air conditioners are portable cooling units that keep outdoor events comfortable. Moreover, they work in tents, canopies, and temporary structures. Furthermore, these units are easy to move and set up anywhere you need cooling.

Key Facts About Tent Air Conditioners

Coverage

Cool spaces from 50 to 1,000+ square meters

Power Range

3HP to 50HP units available

Setup Time

Ready in 15-30 minutes

Best For

Weddings, exhibitions, outdoor events

Price Range

Varies by size and features

Professional Cooling Solutions

What Are Tent Air Conditioners
and Why Do You Need Them?

The Perfect Solution

Have you ever attended an outdoor wedding where the heat became unbearable? Tent air conditioners solve this exact problem by providing professional-grade cooling for temporary outdoor spaces.

These portable cooling systems ensure your guests remain comfortable regardless of outside temperatures.

Energy Efficient

30% less power consumption

Quick Setup

Ready in 15 minutes

Weather Resistant

All-weather operation

Guest Comfort

Happy attendees

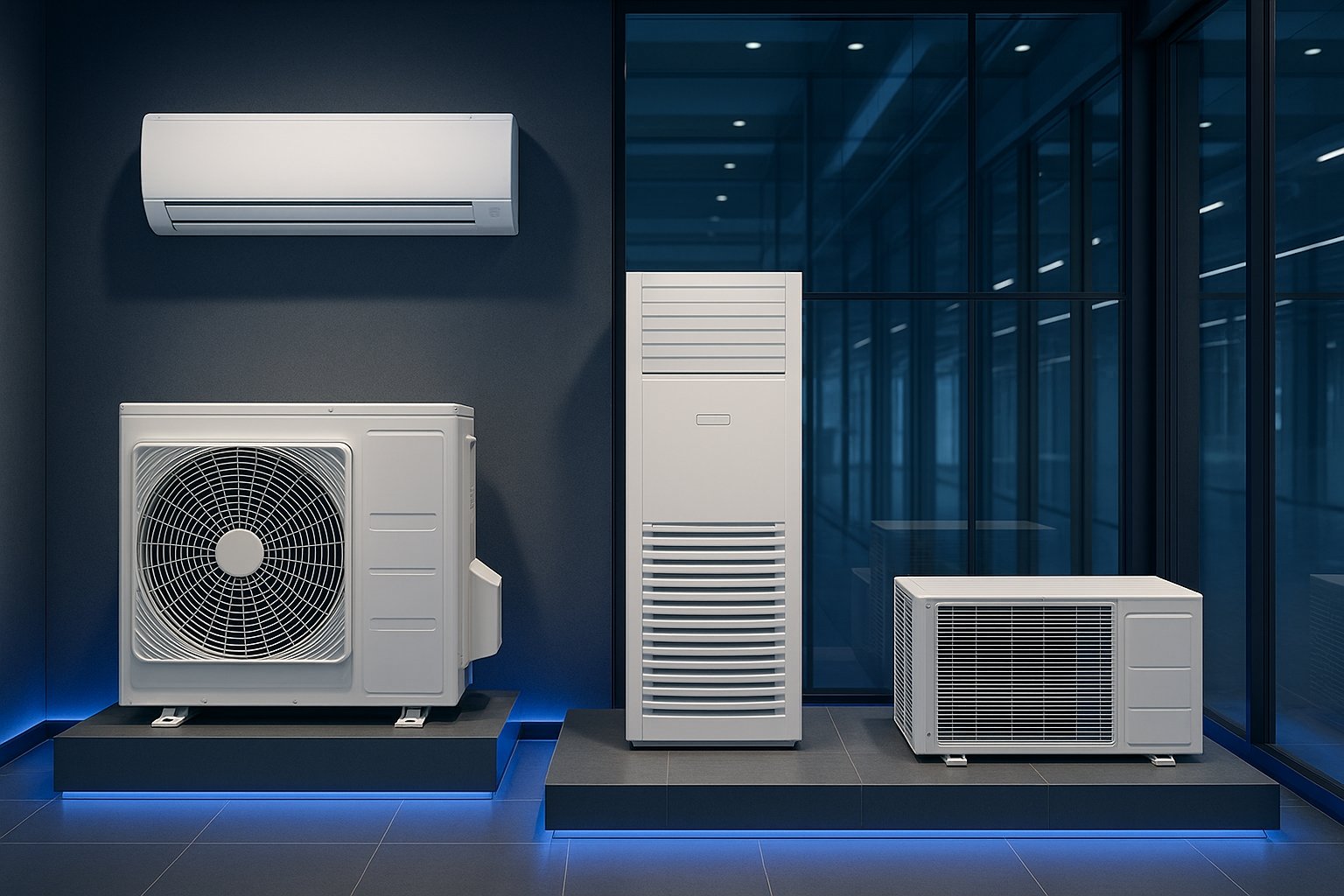

Professional Tent Air Conditioning Units

Professional DX Units

High-efficiency cooling for outdoor events

Weddings Corporate Events Festivals Trade Shows

How They Work

The cooling process follows a simple four-step cycle that maintains perfect temperatures.

1

Air Intake

System draws warm air from tent interior

2

Cooling Process

Refrigerant coils rapidly cool the air

3

Air Distribution

Cool air circulates evenly throughout space

4

Heat Exhaust

Warm air is efficiently expelled outside

Technical Specifications

Parameters Overview

Comprehensive technical specifications for professional tent cooling systems

Performance

Cooling & Heating Capacity

Cooling Capacity
kW
14~105
Heating Capacity
kW
15~120
Power Input
kW
4.3~37.2

System Specs

Core Components

Refrigerant
Primary: R410A
R134a, R407C
R1234ze available
Compressor
1~3 units
Scroll Type
Heat Exchanger
Hydrophilic aluminum fin + High-efficiency copper tube

Operation

Performance Metrics

Air Flow
5.2K~35K
m³/h
Supply Distance
≥15~≥25
m
Noise Level
60~71
dB(A)
Weight
270~1.35K
kg

Unit Dimensions

Compact Series
950×1380×1250
mm (L×W×H)
Industrial Series
1100×2740×2375
mm (L×W×H)
Product Categories

Types of Tent Air Conditioners

Find Your Perfect Match for Any Application

Direct Blowing Classic Model
Classic

Direct Blowing Classic Model

Capacities:

5HP 10HP 15HP 20HP 30HP 36HP

Application:

Large gatherings, exhibitions, outdoor parties needing strong direct airflow.

Advantages: Simple setup, powerful cooling, immediate air supply.

Air Duct Trailer Model
Trailer

Air Duct Trailer Model

Capacities:

15HP 20HP 25HP 50HP

Application:

Large tents, exhibition halls, or temporary storage requiring ducted distribution.

Advantages: Balanced air delivery across wide spaces, flexible ducting options.

Desert Tent Model
Desert

Desert Tent Model

Capacities:

3HP 5HP 7.5HP 10HP

Application:

Harsh desert or military camps where sand-proof and heat-resistant design is critical.

Advantages: Rugged design with enhanced anti-dust protection, ideal for extreme climates.

Premium Components

Enhance Your Comfort:
Tent Air Conditioner Accessories

Compressor

Compressor

Heat Exchanger

Heat Exchanger

Aviation Plug

Aviation Plug

Electric Control

Electric Control

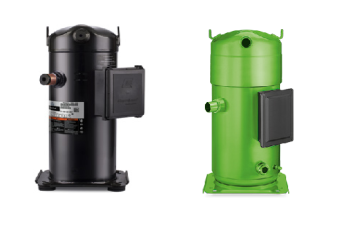

Compressor

World-renowned brand compressors with high efficiency, strong reliability, and long service life. Equipped with multiple protection functions and low vibration operation.

Refrigerants: R22, R134a, R407C, R404A

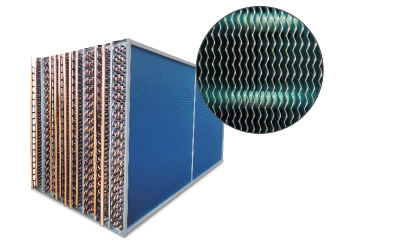

High-Efficiency Finned Heat Exchanger

New hydrophilic aluminum foil with lotus-leaf effect surface, preventing water bridging and reducing dust accumulation for better heat dissipation.

Large fin pitch for higher efficiency

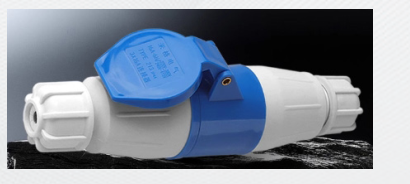

Aviation Plug Connector

High protection level with durability and impact resistance. Special plug design ensures correct insertion, preventing misconnection and signal transmission errors.

Widely used in mobile and outdoor air conditioning equipment for stable and reliable connection in harsh environments.

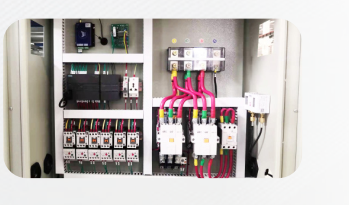

Electric Control Components

Equipped with internationally renowned brands such as Siemens, LG, and Omron. Features automatic control system and Y-Δ start technology to reduce starting current.

Safe and precise operation with automatic control system ensures long-term stability and energy efficiency.

Application Scenarios

Where SongXin Tent Air Conditioners
Perform Best

From intimate gatherings to massive events, discover the perfect cooling solution for every scenario

Pop-up booths and VIP lounges
14–28 kW
Premium

Pop-up Booths & VIP Lounges

Size: 50–120 m²
Capacity: 14–28 kW

Perfect for ticketing areas, back-stage rooms, and exclusive VIP spaces requiring precise climate control.

Quiet Operation Quick Setup
Wedding and banquet tents
34–56 kW

Wedding & Banquet Tents

Size: 200–400 m²
Capacity: 34–56 kW

Ensure guest comfort during special celebrations and mid-size exhibitions with reliable temperature control.

Guest Comfort Elegant Design
Large marquees for sports events
56–105 kW
2–3 Units

Large Marquees

Size: 400–800 m²
Capacity: 56–105 kW

Ideal for expos, sports events, and ceremonies requiring powerful multi-unit cooling systems.

Multi-Zone High Capacity
Temporary warehouse and logistics
84–105+ kW
Multi-Unit

Temporary Warehouse

Size: 500–1,000 m²
Capacity: 84–105+ kW

Multi-unit zoning solutions for logistics canopies and large-scale storage facilities.

Zone Control 24/7 Operation
Emergency and medical tents
28–56 kW
Medical Grade

Emergency & Medical Tents

Size: 100–400 m²
Capacity: 28–56 kW

Critical climate control for triage areas and field wards with optional dehumidification and filtration.

Air Filtration Dehumidification
Command and broadcast tents
14–34 kW
24/7 Ready

Command & Broadcast Tents

Size: 40–120 m²
Capacity: 14–34 kW

Reliable 24/7 operation for security, broadcast, and command centers with N+1 redundancy.

N+1 Redundancy Remote Monitor
Catering and kitchen tents
56–84 kW
High Heat Load

Catering & Food Service

Size: 150–300 m²
Capacity: 56–84 kW

Powerful cooling for field kitchens and food service areas with high internal heat loads.

Heat Resistant Grease Filter
Film and TV basecamp tents
34–56 kW

Film & TV Basecamp

Size: 150–300 m²
Capacity: 34–56 kW

Comfortable climate control for make-up trailers, wardrobe areas, and dining facilities.

Low Noise Flexible Setup
8-105+
kW Capacity Range
Complete power solutions
20-1000
m² Coverage
Any size venue
24/7
Operation Ready
Continuous reliability
15 min
Setup Time
Quick deployment

Need Help Choosing the Right Solution?

Our engineering team provides free consultation to determine the optimal cooling capacity for your specific application.

Installation Guide

Installation and Setup Guide
for Tent Air Conditioners

Professional installation made simple with our step-by-step process

Quick Setup Process

01

Site Preparation

Choose level surface with 1.5m clearance for proper airflow

02

Unit Positioning

Position unit outside tent and connect flexible ducting securely

03

Power Connection

Connect to power source using aviation plug connector

04

System Testing

Start unit and test all functions and temperature control

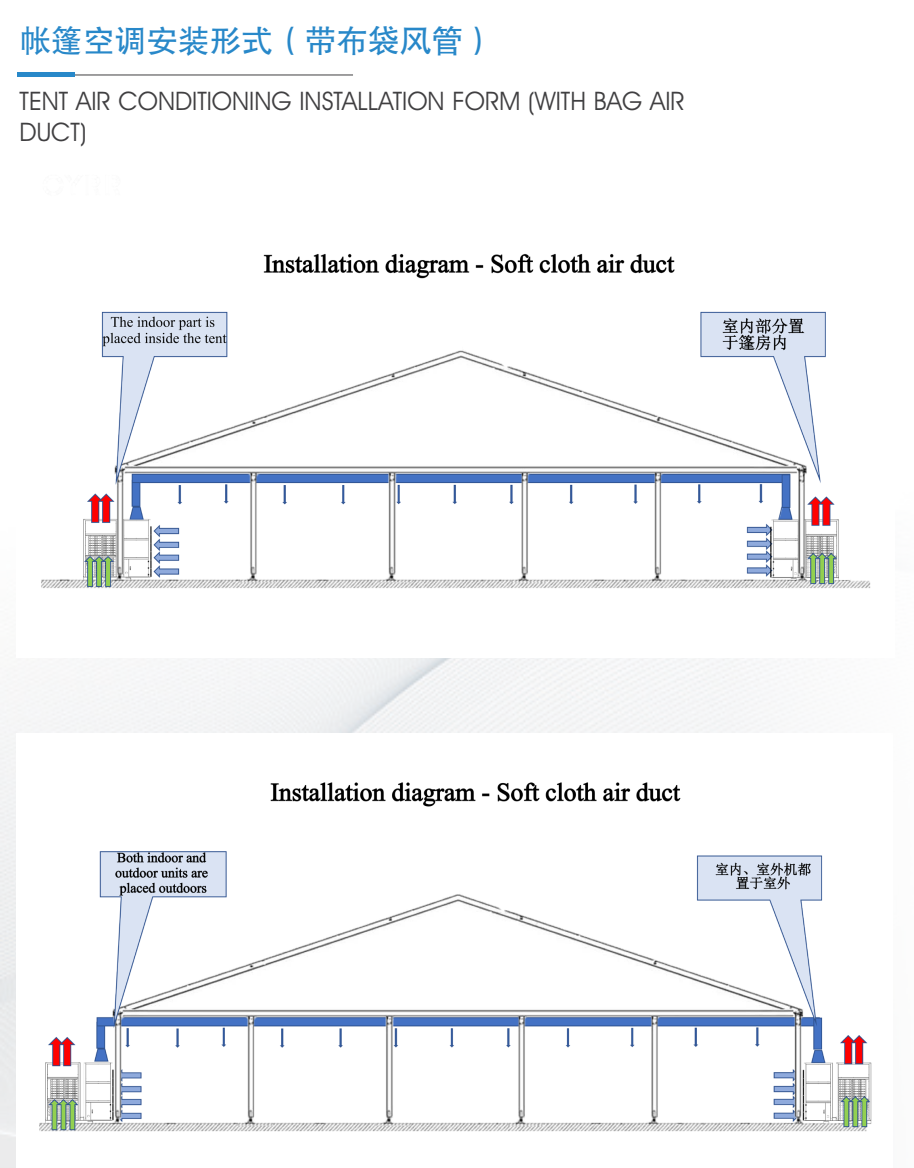

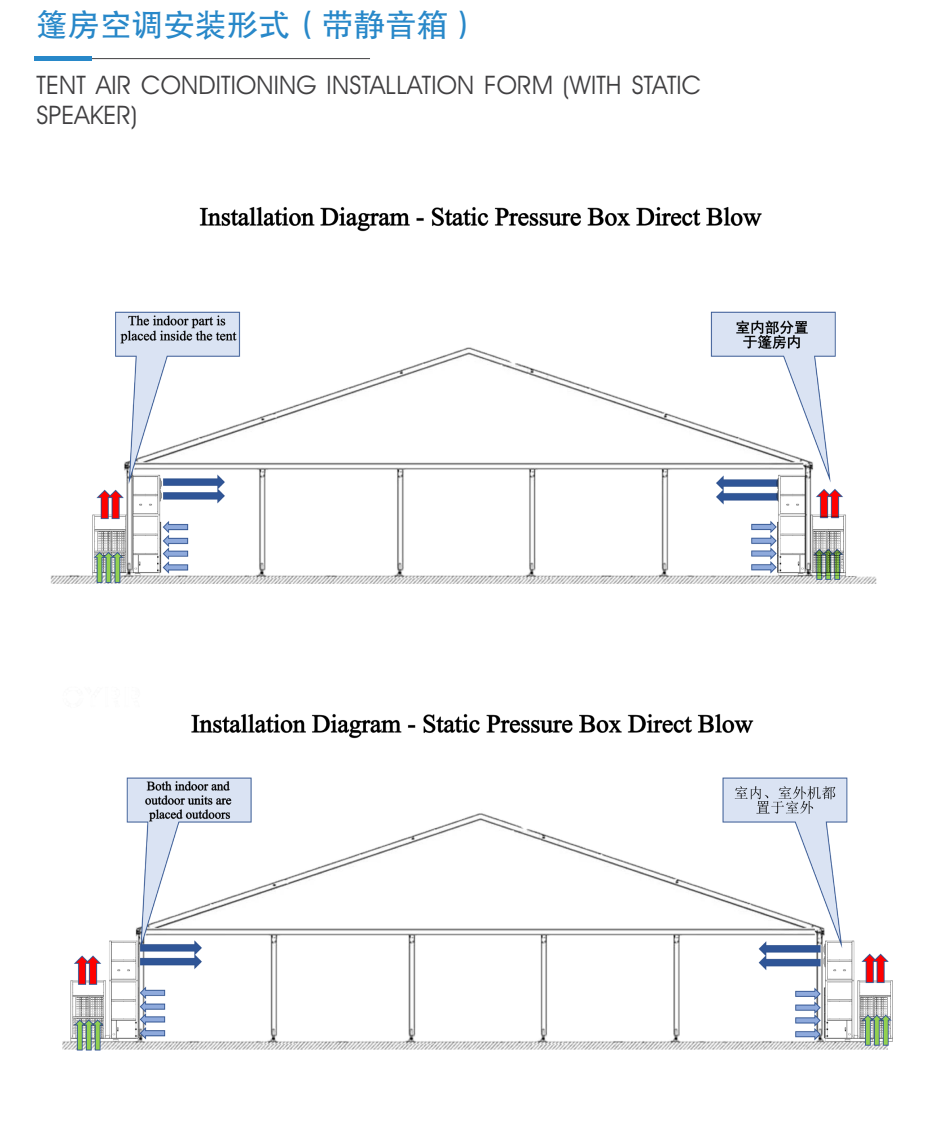

Installation Layout

Setup configuration diagram

Tent air conditioner installation diagram

Professional Installation

Certified technician service

Professional tent air conditioner installation

Need Professional Installation?

Our certified technicians provide complete installation services with warranty coverage.
